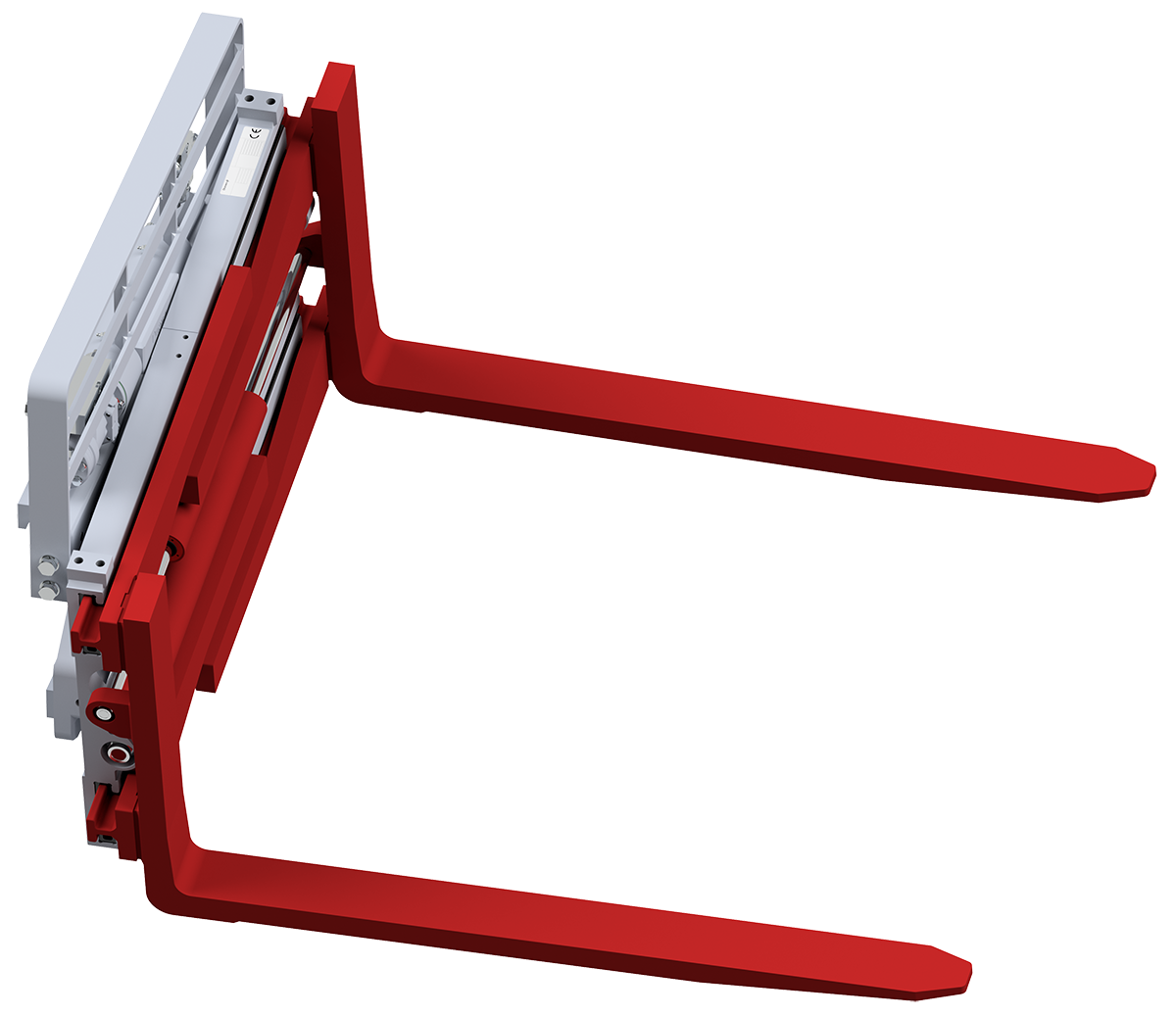

The clamps up to a capacity of 2 tons were widely upgraded and optimized resulting in a significant improvement of the technical data. The clamps are able to move beyond the basic frame width of the unit. They are suitable for clamping and/or handling loads on the forks. Depending on application/load, the type may change. There are rotating and non-rotating clamps. Good visibility and a compact design are an important feature. Depending on the attachment type, the unit is equipped with constant or integral sideshift. Without sideshift is also an option.
- lower lost load centre via patended oil supply
- reduced weight
- increased residual capacity
- standard with bolt-on forks resulting in lower spare part cost
- design with improved visibility
- stable construction due to compact and strong frame
- slot and key connection
- high-quality wear parts
- valve technology with regenerative circuit
- modular design
- DurwenServicePlus

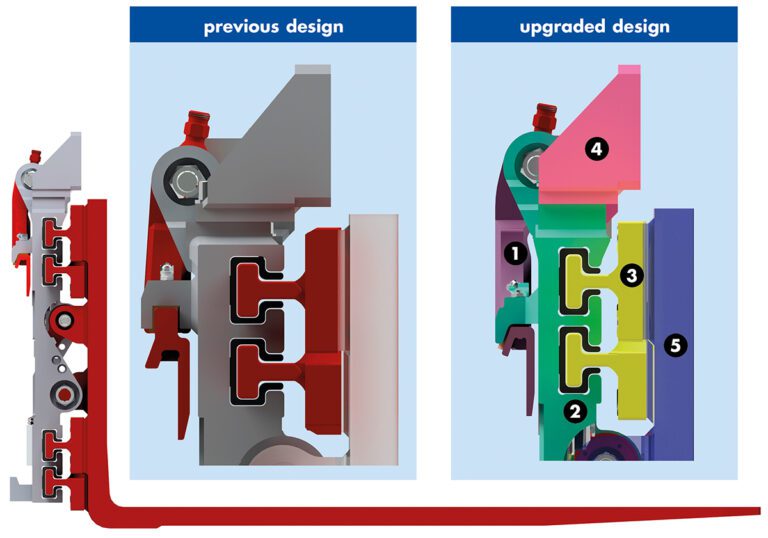

FEM optimized - lower lost load centre and weight
- 1: next gen sideshift for improved weight
- 2: slim frame design/E-profile for lower lost load centre
- 3: optimized T-profile
- 4: protection strip with lower weight
- 5: ideal fork dimension
